Details

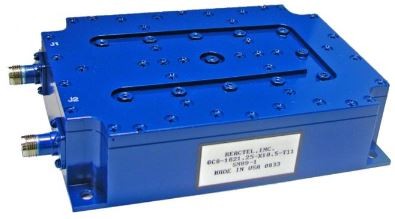

6C9-1621.25-X10.5T11 Reactel IRIDIUM Cavity Bandpass Filter, Airborne
This unit is specifically designed with a narrow bandwidth
High rejection to isolate Iridium frequencies from outside interference due to Inmarsat systems
Utilizes a special plating process
This unit can be outfitted with any RF connector you may desire.
Center Frequency: 1621.25MHz
Passband: 1616–1626.5MHz, minimum
Insertion Loss: ≤3.3dB @ Passband
Rejection: ≥35 dB @1614MHz
Rejection: ≥25 dB @1628MHz
VSWR: ≤ 1.5:1
Connectors: TNC Female in / out
Size(HxWxL): 38 x 114 x 160mm(1.5 x 4.5 x 6.3in), nominal excluding connectors
Please contact the factory for this or any other Iridium filter requirement that you have
