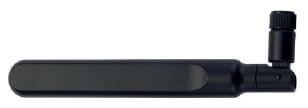

ST100304-002 SkyWave SG-7100 Cellular plus GPS Antenna for the SG-7100 Cellular Gateway
The Cellular/GPS antenna offers similar functionality to the main cellular antenna, plus it supports GPS signals.
Because GPS signals are very faint, the cellular/GPS antenna must be larger than the cellular-only antenna.
The cellular/GPS antenna is mainly used for GPS, but it also provides cellular diversity, which improves the reliability of cellular reception.
Cellular: HSPA Penta-Band: 800/850/1800/1900/2100 MHz (includes Australian 3G/Next-G)
GPS: GPSL1 and GLONASS
This antenna is connected to the SG-7100 antenna connector labeled, “WWAN Div/GPS”.
SPECIFICATIONS
Network Coverage: GSM 850/900/1800/1900 MHz
Frequency: GPS 1575.42 MHz ± 1 MHz
Impedance: 50Ω
Input Power: 50W
Peak Gain: 0.5 dBi straight, 1.5 dBi bent
Efficiency: 35% straight, 55% bent
Radiation Pattern: Omni
Polarization: Linear
Mechanical Properties
Connector: Hinged SMA (male), can be used straight or hinged 90°
Temperature Range: -40° to +85°C
Size: 168 x 18 x 13 mm
Humidity: Non-condensing 65°C, 95% RH
