Details

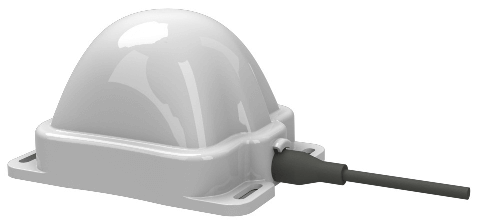

ST901066-ASA Skywave IDP-800 and IDP-100 Low Elevation Antenna, side-entry 5.0m cable with SMA-male connector
Ideal for use with the IDP-800 and IDP-100 Satellite terminals.

Specifications
Elevation Angle: +20° to +90° (Integrated or remote antenna); -15° to +90° (Low elevation antenna)
Frequency: Rx: 1525.0 to 1559.0 MHz;, Tx: 1626.5 to 1660.5 MHz
EIRP: 7.0 dBW
Acquisition Time: Hot: 1s; Cold: 29s/30s
Accuracy: 2.5m/4.0m CEP-Horizontal
Sensitivity (Tracking): -162 dBm/-158 dBm
Power
Power Consumption (Typical @12V DC, 22°C):
Average receive: 8.3 mA;
Receive with GPS/GLONASS: 40 mA; Transmit: 0.75 A;
Sleep: 100 μA; Power off: 12 μA

Antenna Ordering Guide:
Helix Antenna, part# ST901066-ASA for Marine and Geographic low elevation land applications
Low Profile, part# ST901065-ASA for general land applications and where is a low profile is required
